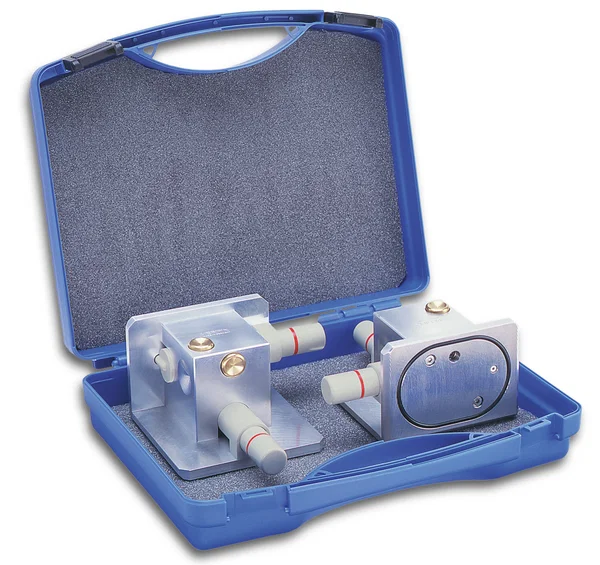

Verifix® angle pump suction set.

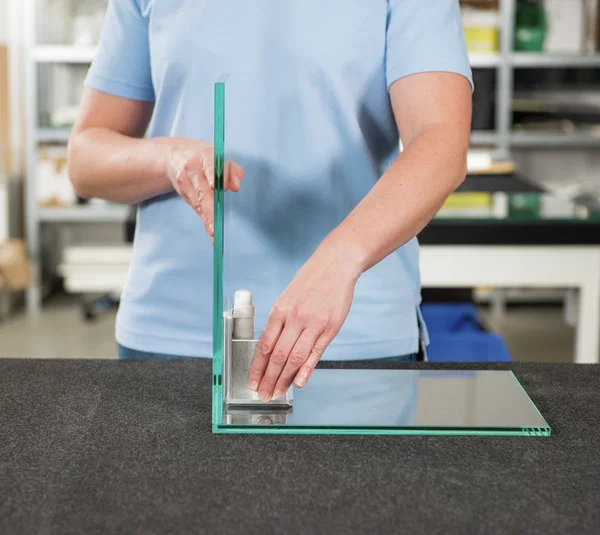

TTwo panes are positioned at a 90° angle to each other. The vertical pane is then adjusted. The height and depth of the corner suction cup can be adjusted by 12 mm. This allows the gap width to be adjusted for the optimum adhesive layer thickness. Fastening devices are not suitable for supporting glass. Application note:Always store the product in such a way that the suction discs are not damaged. Suitable for glass-to-glass edge bonding Suitable for glass panes up to 60 cm in height Adjustable gap width Adjustment range ± 12 mm

Two glazing units are positioned at a 90° angle to each other. The vertical glazing unit is then adjusted. The height and depth of the corner suction cup can be adjusted by 12 mm. This allows the gap width to be adjusted for the optimum adhesive layer thickness. Fastening devices are not suitable for supporting glass. Application note:Always store the product in such a way that the suction discs are not damaged. Suitable for glass-to-glass edge bonding Suitable for glass panes up to 80 cm in height Adjustable gap width Adjustment range ± 12 mm

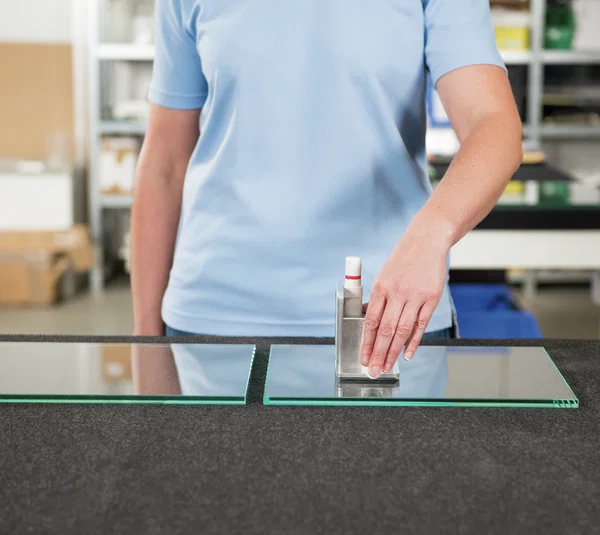

Quick and easy installation of glass panes. The corner suction cup has proven its worth in display cabinet construction over many years. Thanks to its simple operation, smaller glass objects can be fitted in no time at all. Perfect for use with low-viscosity adhesives. Thanks to its stable design, small panes can be fitted using just a single corner suction cup. For larger panes, it is recommended to use a suction cup every 50 cm. If the panes are taller, you can use clamps to stabilise and adjust the top corner of the glass. Fastening devices are not suitable for supporting glass. Application note:Always store the suction cup in such a way that the sealing rings are not damaged. A loss of vacuum is indicated by a red signal ring. Suitable for glass-to-glass edge bonding Suitable for low-viscosity adhesives Quick and easy to use Robust design
