Veribor® 2-nap hinged plastic suction cup.
€95.00
Product information "Veribor® 2-nap hinged plastic suction cup."

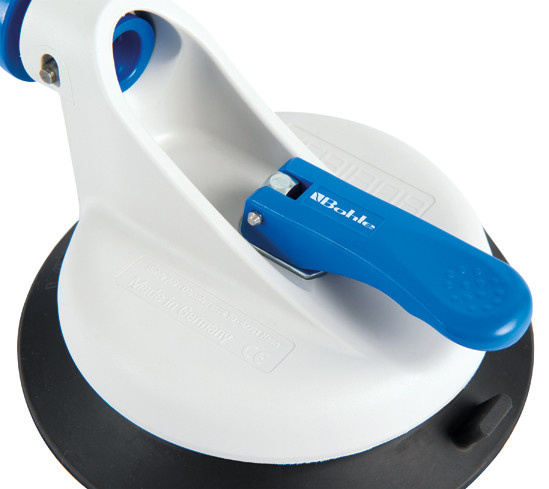

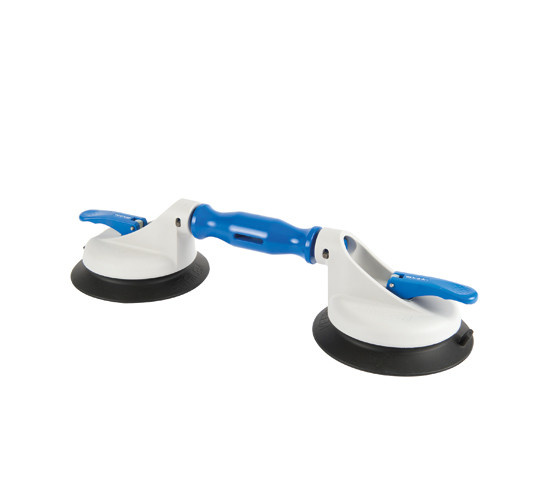

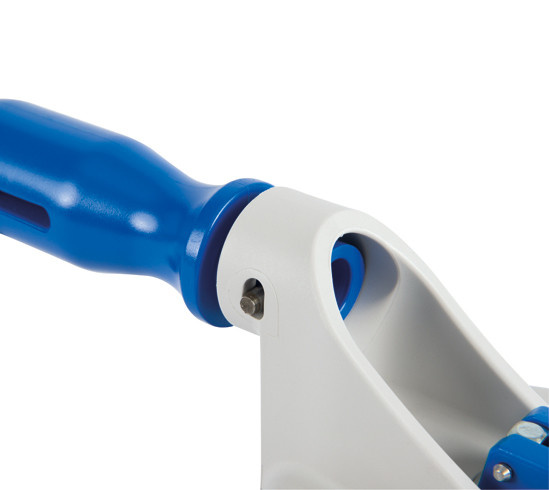

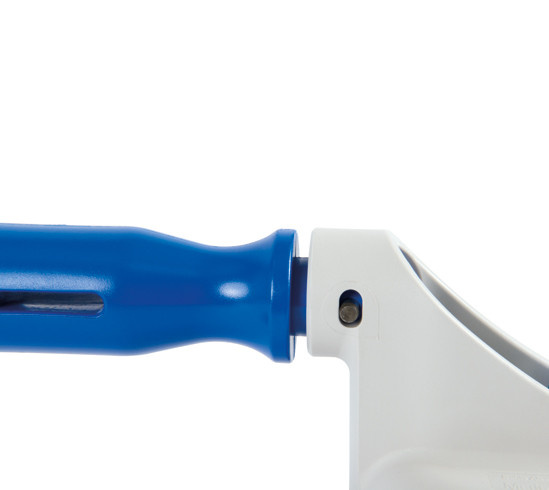

Secure grip and optimum comfort for curved glass: The Veribor® 2-head hinged suction lifter (602.3G) with extra-large rubber discs (ø 150 mm) offers exceptionally strong vacuum power and, thanks to the combination of the special rubber disc and the movable suction heads with slotted holes, is therefore ideally suited for use with highly curved materials. It also has a large grip surface and therefore fits perfectly in the hand. The two movable heads are the ideal solution for transporting or fitting curved windscreens, for example in the automotive industry. The release tab on the rubber disc makes it easier to remove the rubber disc from the object after use. The levers are ergonomically and user-friendly designed. Their wide surface area ensures optimum force transmission. Crucial to the quality are the high-grade, PAH-free rubber discs in tried-and-tested Bohle quality: they are dimensionally stable, yet soft enough to adapt to the surface under vacuum. The hinged twin-head suction cup lifting device can handle loads of up to 45 kg (double safety factor) and is suitable for all materials and objects with gas-tight surfaces.
| Lifting capacity: | 45 kg |
|---|---|
| Suction disc diameter: | 150 mm |
| Materials: | Kunststof |
| GS certified: | Nee |
| Surface geometry: | Gebogen |
| Vacuum safety indicator: | Nee |
| Drive type: | Hevel |
| Direction of grain: | Parallel |
